Introduction: Consistent single shaft shredder output depends on the combined condition of the blade edge, cutter clearance, and screen openings.
When a recycling plant sees more fines, larger pieces, long strips, or a less even discharge stream, the cutting chamber is an important place to inspect. A blade edge can lose its defined cutting point, the working clearance can change, and screen openings can become enlarged or uneven. These changes affect how material is cut, how long it remains in the chamber, and when it passes through the screen. Effective maintenance connects component condition with output behavior. The key question is whether the blade edge, rotor clearance, and screen are still working together to produce a stable particle distribution.
A single shaft shredder produces a wider mix of particle sizes when the cutting action becomes less controlled. A sharp blade edge creates a defined cutting point against the fixed cutting surface. As the edge wears, the rotor spends more time pushing, tearing, or rubbing material instead of separating it cleanly. Some pieces remain in the chamber for additional passes, while others break into smaller fragments after repeated contact. The same machine setting can then produce a broader size distribution. The visible result varies with the material. In plastic processing, operators may see more long strips, ragged pieces, or fines. With wood pallets and other rigid wood waste, worn edges can leave larger splinters and irregular chunks. Tough or fibrous materials make this change more noticeable because they depend on an effective edge to separate efficiently. Output variation can therefore provide an early maintenance signal before severe cutter damage becomes obvious. Screen condition creates the second part of the cause chain. The screen determines which pieces can leave the cutting chamber, so its openings need to retain their intended shape and size. Repeated impact and abrasion can enlarge openings, deform their edges, or create uneven surfaces around the holes. A screen with inconsistent openings can release some oversized pieces while holding back other material. The discharge then contains a broader size spread even though the original screen specification remains unchanged. Cutter clearance adds another control point. This working gap affects how the moving cutter meets the fixed cutting area. A clearance that increases through wear, movement, or adjustment can weaken the cutting action and allow material to pass through with fewer effective cuts. A clearance that becomes too small can increase the risk of contact and mechanical stress. Stable output relies on the intended relationship between the moving cutter, fixed cutting surface, and screen. Replacing the most visibly worn blade may therefore leave part of the output problem in place. A screen with enlarged openings or a clearance that varies along the rotor can continue to produce irregular material. Output inconsistency usually develops through several small changes in the same system rather than one sudden component failure. The useful maintenance response is to compare the discharge pattern with the condition of all three controls.

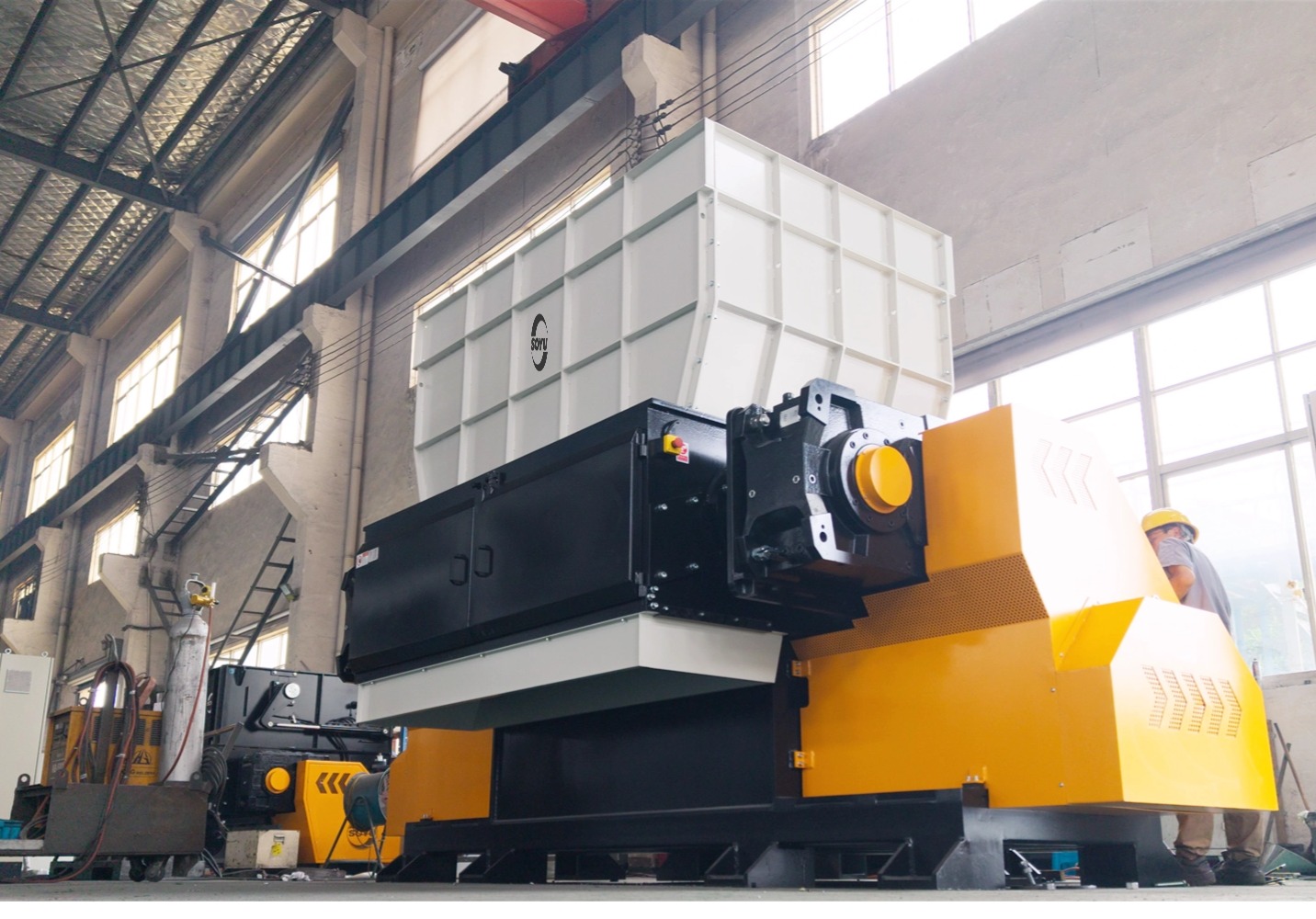

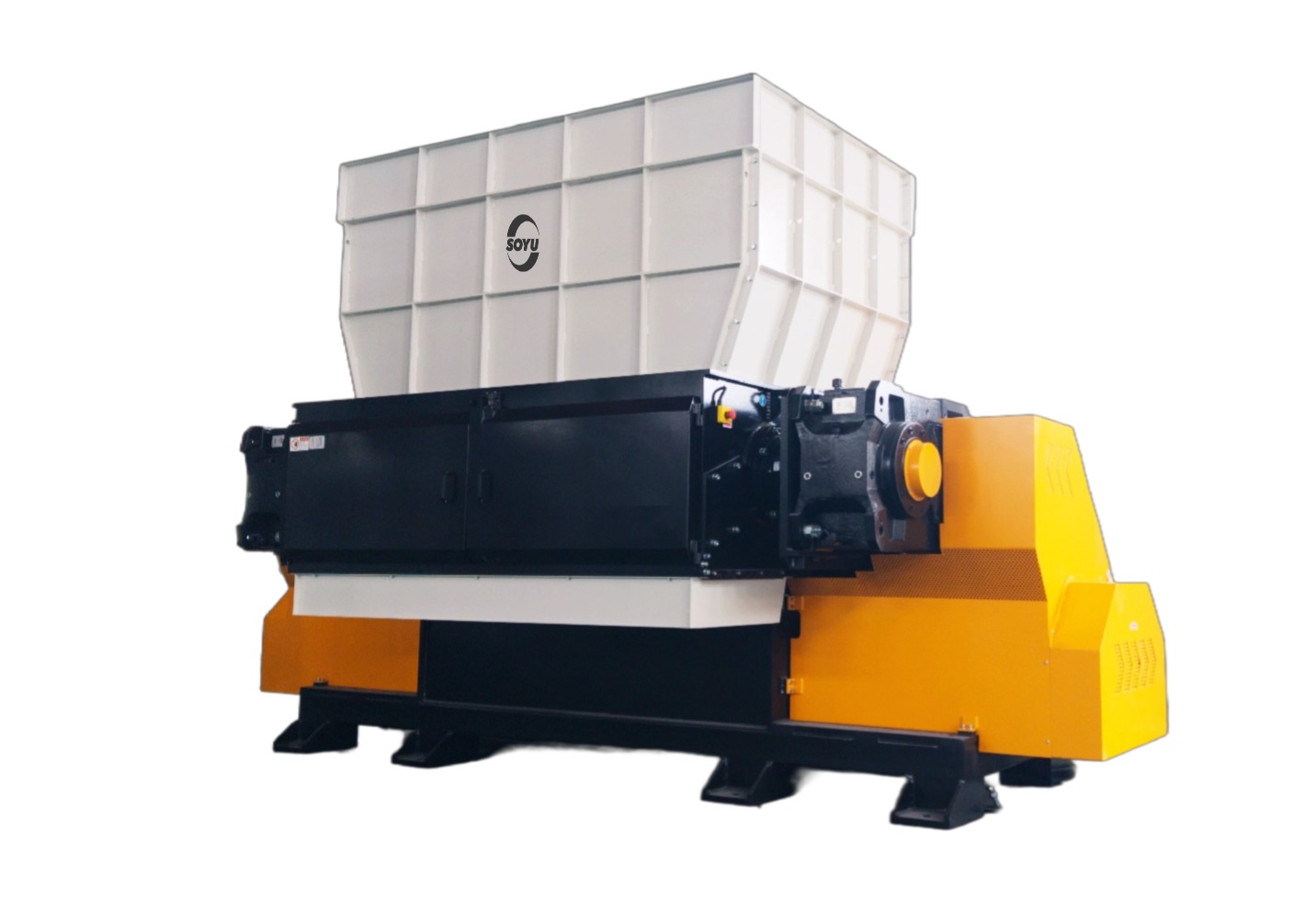

The three variables control different stages of size reduction. The blade edge begins the separation of the material. Cutter clearance determines how effectively the moving and fixed cutting surfaces meet it. The screen controls when the resulting pieces are small enough to leave the chamber. A steady discharge requires these stages to remain compatible. A screen cannot restore a defined cutting action when the blade edge has become blunt. The cutter may still reduce material, but it can require more passes before pieces reach a size that allows them to pass. Repeated circulation increases rubbing and can raise the proportion of fines. A sharp blade also has limited value when screen openings are worn or damaged, because the discharge boundary has changed. The SR900 Series product information describes a V-shaped rotor arrangement, double-edged blades, replaceable screens, and screen-controlled output in the 40-100 mm range. These are manufacturer-stated design features. Their maintenance significance lies in the relationship between cutting and discharge: the blade creates the cutting edge, the clearance supports the cutting action, and the screen determines the release size. SOYU Machinery presents these features as part of the SR900 Series configuration.
A double-edged blade has two usable cutting sides. When one edge reaches its service limit, the blade can be turned according to the equipment design so the second edge becomes the working edge. This provides another usable cutting surface before the cutter requires a different service action or replacement. The practical benefit is a more defined cutting point and a clearer response to edge wear. A fresh working edge can reduce the tendency to drag or crush material and can help restore the cutting relationship with the fixed surface. The turning method, fastening arrangement, and allowable wear condition depend on the machine design and maintenance procedure. The SR900 Series product information describes its rotating cutters as CrMoV high-alloy wear-resistant steel and identifies the blades as double-edged. These features serve different purposes. The material description concerns resistance to wear, while the double-edged design concerns the available service position. Both support maintenance decisions, while actual cutting performance remains the most useful condition signal.
The screen and rotor clearance should be assessed as separate controls. Clearance affects how material is cut or torn between the rotor and fixed cutting area. The screen affects when material is allowed to leave. A sound clearance paired with a damaged screen can release oversized pieces. A sound screen paired with excessive clearance can create inefficient cutting and repeated circulation. The discharge pattern helps connect the symptom with the relevant component. A sudden increase in larger pieces can accompany enlarged or deformed screen openings, while excessive clearance can create a similar result by leaving material too large for consistent passage. A rise in fines can follow repeated circulation caused by a worn edge, rough screen surfaces, or an uneven gap. Inspecting these conditions together produces a more reliable maintenance diagnosis than examining one part in isolation. Replaceable screens support this process because a screen can be changed when its openings no longer control the intended discharge. The SR900 Series product information describes interchangeable screens with different opening configurations and identifies a 40-100 mm output range controlled by screen openings. The selected screen and the physical condition of the cutting system therefore belong in the same maintenance assessment.
Maintenance planning works best when it follows machine behavior and material conditions. Service intervals, blade life, replacement time, and spare-parts schedules vary with the material, contamination level, loading pattern, operating hours, and inspection findings. A calendar can support planning, but discharge behavior provides a stronger condition signal for deciding when closer inspection is appropriate. Useful observations include a rising proportion of fines, more oversize pieces, longer strips, slower passage through the screen, or a change in motor load under comparable feed conditions. The maintenance team can compare current output with the normal pattern and then examine blade edges, screen openings, mounting surfaces, and cutter clearance as one connected system. This approach links the maintenance action to the observed process change. Material conditions also shape the wear pattern. Clean plastic, wood pallets, paperboard, and low-metal-content waste cable place different demands on the cutting chamber. Abrasive contamination can accelerate wear, while tough material can increase loading on the rotor and pushing system. The SR900 Series description links its hydraulic pushing system with different feed behavior for easier and tougher materials. That arrangement supports load management, while condition-based observation directs attention to the blades, screen, and clearance. Safe access is part of the same planning process. The UK Health and Safety Executive identifies moving parts, stored energy, unexpected start-up, blockages, and maintenance activities as important risks around waste and recycling machinery. Before anyone enters or reaches into a single shaft shredder chamber, the machine must be stopped, isolated from relevant energy sources, and secured against unexpected movement under the site’s approved safety procedure. The SR900 Series product information states that opening the screen unit automatically stops the shredder. This interlock supports safer access around the screen assembly. It works alongside guards, controlled access, and site procedures for energy isolation. The exact authorization steps, isolation method, and inspection process belong to the plant’s machinery safety procedure and equipment documentation. After maintenance, the most useful check is the discharge pattern under comparable material conditions. A component can appear serviceable while producing a weak cutting action, uneven screen openings, or inconsistent clearance along the rotor. Observing the resulting particle distribution connects the physical inspection with actual operating performance. When the discharge becomes more uniform, the relationship between the service action and output condition becomes easier to evaluate.
Consistent single shaft shredder output comes from keeping the cutting edge, cutter clearance, and screen openings in balance. Blade wear can increase repeated passes and fines, screen wear can release oversized pieces, and clearance changes can weaken the cutting action between them. Maintenance teams achieve clearer diagnoses when they treat these parts as one output-control system. The SR900 Series provides a product example through its double-edged blades, replaceable screens, and screen-controlled 40-100 mm output range. The practical maintenance principle is broader: track changes in the discharge, relate those changes to blade, screen, and clearance condition, and perform service within a properly isolated and controlled work process. For equipment-specific maintenance decisions, the material, operating conditions, inspection findings, and manufacturer documentation should be considered together.
A：Blade edges gradually wear, screen openings can become enlarged or deformed, and cutter clearance can change through wear or adjustment. These conditions alter how material is cut, how many times it circulates in the chamber, and when it passes through the screen. The discharge may then contain more fines, larger pieces, or a wider mix of sizes.
A：A double-edged blade provides a second usable cutting edge when the first edge wears, helping restore a more defined cutting action. A replaceable screen allows a worn or unsuitable screen to be changed so its openings can continue controlling discharge size. Both features support consistency when used with suitable cutter clearance and condition-based maintenance.
A：They should consider moving parts, stored hydraulic or electrical energy, unexpected start-up, blocked material, and the security of guards and access points. The machine must be stopped, isolated from all relevant energy sources, and secured under the site’s approved maintenance procedure. An automatic stop feature adds protection around the screen assembly, while controlled isolation governs chamber access.
