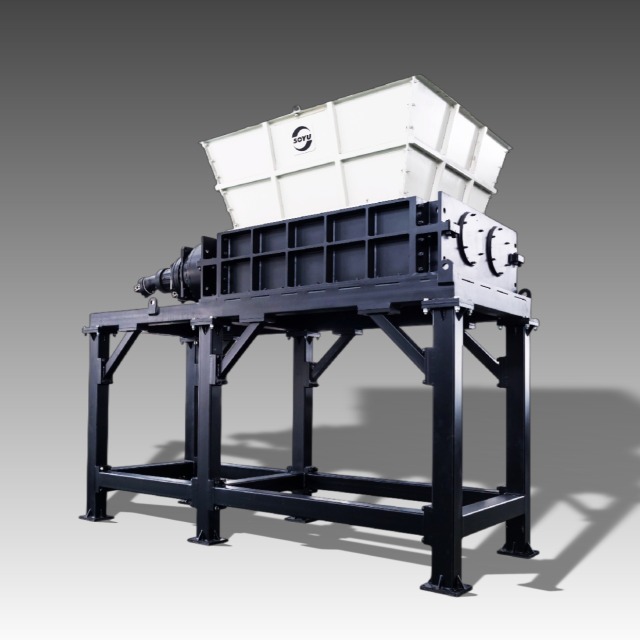

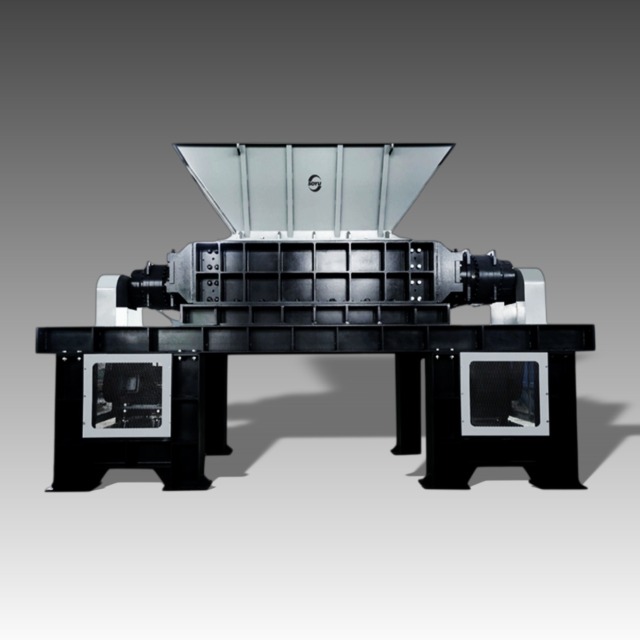

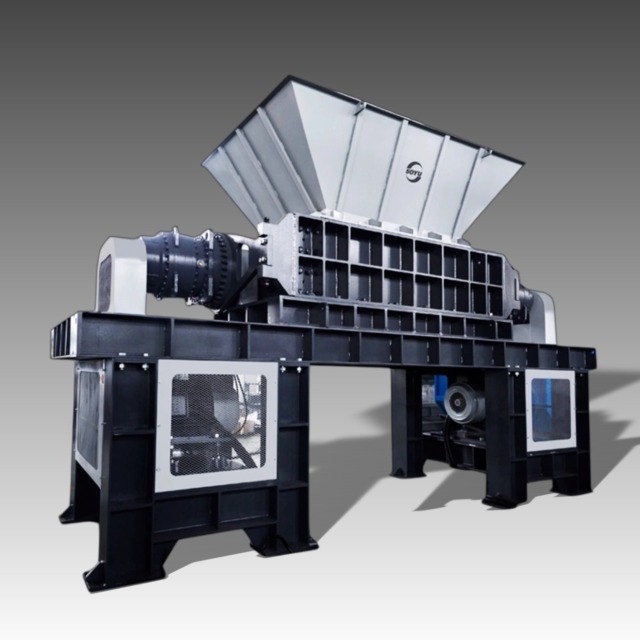

Manufactured by CHANGSHU SHI SHOUYU MACHINERY CO., LTD. (SOYU), the SYU Series Two Shaft Shredder represents a signature line within our high-performance 3E Series technology platform (shredder3e.com).
Boasting high efficiency and low consumption, this series adopts dual-shaft shearing paired with a planetary gearbox drive—delivering low-speed, high-torque, strong, and uniform tearing force that cuts energy use (vs. same-capacity equipment) while keeping dust and noise compliant. For heavy-duty durability, its moving blades (crafted from DC53/D2 high-alloy wear-resistant steel) support multi-faceted regrinding, and the thickened frame resists high torque to handle large or hard materials without damage. As the official operator of shredder3e.com, we provide tailored SYU series solutions and integrated technical support to maximize recycling efficiency for our global clients.
| Model | Motor power(kw) | Main blade rotation diameter(mm) |
Main blade rotation diameter(mm) | Main blade quantity(pcs) | External dimensions(mm) | Equipment weight(kg) |
|---|---|---|---|---|---|---|
| SYU1940 | 7.7KW | 18.5mm | φ245mm | 20 | 1860x900x1800mm | 1400kg |
| SYU1960 | 2X7.5KW | 18.5mm | φ245mm | 30 | 1950x900x1800mm | 1600kg |
| SYU1980 | 2X11KW | 18.5mm | φ245mm | 42 | 2180x900x1800mm | 1800kg |
| SYU2360 | 18.5KW | 25mm | φ290mm | 24 | 2300x1000x1950mm | 3000kg |
| SYU2380 | 22KW | 25mm | φ290mm | 32 | 2500x1000x1950mm | 3500kg |
| SYU23100 | 22KW | 25mm | φ290mm | 40 | 2700x1000x1950mm | 4000kg |
| SYU2680 | 18.5KW | 40mm | φ320mm | 20 | 2410x1100x2050mm | 4200kg |
| SYU26100 | 22KW | 40mm | φ320mm | 25 | 2810x1100x2050mm | 4600kg |
| SYU26120 | 22kw | 40mm | φ320mm | 30 | 3010x1100x2050mm | 5000kg |
| SYU3380 | 2x22KW | 50mm | φ430mm | 16 | 3000x1250x2150mm | 4700kg |
| SYU33100 | 2x30KW | 50mm | φ430mm | 20 | 3000x1250x2150mm | 5200kg |
| SYU33120 | 2x30KW | 50mm | φ430mm | 24 | 3000x1250x2150mm | 5700kg |
| SYU41100 | 2x30KW | 50mm | φ534mm | 20 | 3660x1700x2650mm | 9000kg |
| SYU41140 | 2x37KW | 50mm | φ534mm | 28 | 3660x1700x2650mm | 10000kg |
| SYU41160 | 2x45KW | 50mm | φ534mm | 32 | 3660x1700x2650mm | 11000kg |
| SYU50130 | 2x55KW | 50mm | φ650mm | 32 | 4200x2100x3000mm | 13000kg |
| SYU50180 | 2x55KW | 50mm | φ650mm | 36 | 4200x2100x3000mm | 14000kg |
| SYU50180 | 2x75KW | 75mm | φ800mm | 24 | 5400x2400x3700mm | 20000kg |
| SYU61210 | 2x90KW | 100mm | φ800mm | 21 | 5400x2400x3700mm | 23000kg |
| SYU80210 | 2x225KW | 150mm | φ980mm | 14 | 7100x2900x4200mm | 26000kg |
| SYU80250 | 2x225KW | 150mmφ980mm | φ980mm | 17 | 7100x2900x4200mm | 29000kg |
| SYU80300 | 2x225KW | 150mm | φ980mm | 20 | 7100x2900x4200mm | 32000kg |
